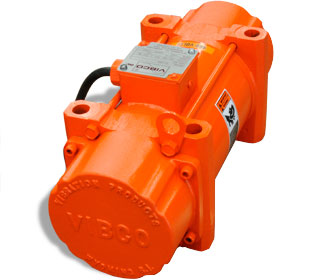

4P-1000-1 - Large Electric Vibrator



RECOMMENDED ACCESSORIES

4X6.25CH-IN - Channel Iron (Inches)
SC-2 - Safety Cable
VMM-4 - Mounting Plate for 2P-450-1, 4P-700, 4P-1000, 6P-300, 6P-500

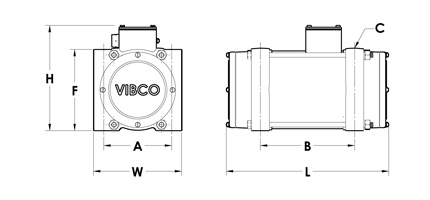

Dimensions

A 5 in
128 mm
B 8-3/8 in
213 mm
C* 5/8 in
16 mm
L 15-1/2 in
394 mm
W 6-1/2 in
166 mm
H 7-5/8 in
194 mm
F 6 in
153 mm
* Bolt Size

Tech Data

VPM 1800
HP 1/2
Phase 1
Volt 110-120
Amp 6.2
Force lbs 250-800
Force Newtons 1112-3558
dB 63
Weight 69 lbs

A Versatile and Durable Solution


VIBCO's Silent electric vibrators are totally enclosed and can be used inside or outside, in dust, dirt, rain or snow. They solve a wide variety problems - speeding the flow of bulk materials through any size bin, hopper or chute, packing material in drums and bags, consolidating concrete, aiding the efficiency of material through screens - whatever your challenge, VIBCO has an electric vibrator solution.

VIBCO electric vibrators are long lasting and provide years of service under even the toughest conditions. We even offer some models specially designed for corrosive environments. Electric vibrators typically have 2-3 times the life expectancy of air-operated units.

Unmatched Depth and Breadth of Electric Vibrators


With more than 150 electric models to choose from, VIBCO has an electric vibrator to suit your specific needs including adjustable speed and force, heavy duty, high frequency and explosion proof models. VIBCO's Big BerthaTM Dumpbody Vibrators and SandBusterTM Spreader Hopper Vibrators are perfect for trucking and mobile applications

Made In The USA 50 Years


US Flag

VIBCO Vibrators™ are 100% MADE IN THE USA since 1962.

Top Quality, Fastest Delivery

  • 100% Manufactured in the USA
  • Strict quality standards
  • Available and in-stock
  • Same day or next day shipping
  • Made with pride since 1962
