2PCD-650-1 - Large Electric Vibrator



RECOMMENDED ACCESSORIES

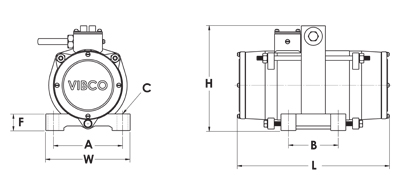

Dimensions

A 4.92 - 5.51 in
125 - 140 mm
B 3.54 in
90 mm
C* 1/2 in
13 mm
L 11-5/8 in
295 mm
W 6-1/4 in
159 mm
H 7 in
178 mm
F 1-1/8 in
29 mm
* Bolt Size

Tech Data

VPM 3600
HP 1/3
Phase 1
Volt 110-120/220-240
Amp 3.6/1.8
Force lbs 50-705
Force Newtons 225-3135
dB 62
Weight 44 lbs

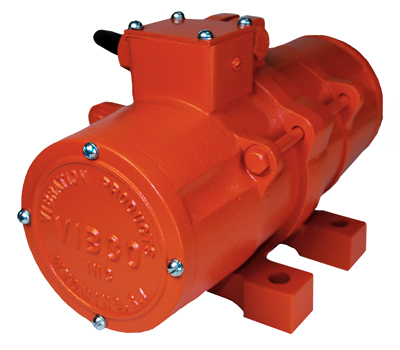

VIBCO’s Model 2PCD is designed to cross-over metric and European style vibrators with foot print dimensions that match most models. Comparable force outputs allow the 2PCD series to be installed directly to your existing mount.

The 2PCD models are totally enclosed, rated forcontinuous duty and completely noiseless. Motors are all made in the U.S.A. and meet American NEMA and ASTME standards. They can be used inside or outside, in dust, dirt, rain or snow.

• Oversized bearings ensure long life.

• Windings are high heat resistant to take additional overload and heat.

• Terminal box located on top of unit for easy connection & change of voltage.
