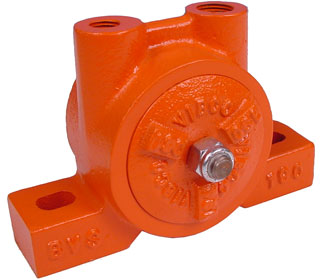

BVS-190 - Pneumatic Turbine Vibrator



RECOMMENDED ACCESSORIES

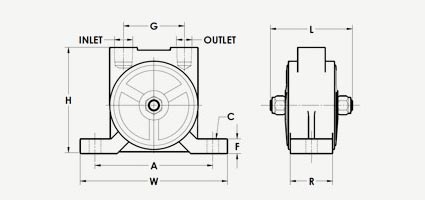

Dimensions

A 4 in
102 mm
C* 3/8 in
10 mm
L 3 3/16 in
81 mm
W 5 1/4 in
133 mm
H 3 7/16 in
87 mm
F 7/8 in
22 mm
G 1 7/8 in
48 mm
R 1 5/16 in
33 mm
INLET 1/4 NPT
OUTLET 3/8 NPT
* Bolt Size

Tech Data

80 psi
VPM 7200
CFM 8.5
Force lbs 270
Force Newtons 1201
dB 71
Max Lbs Material in Bin 2700
Weight 3.5 lbs

VIBCO BVS Silent Turbine Vibrators are ideal for food, pharmaceutical, sanitary and other environments where exhaust must be piped away.  Also ideal for outdoor use.


  • Use VIBCO BVS Turbine Vibrators on any new installation or to replace your old, noisy, messy ball or piston vibrators.
  • VIBCO BVS Turbine Vibrators feature a threaded exhaust to easily pipe off exhausted air, are virtually silent, and are ideal for food, pharmaceutical and other clean environments.
  • Rated for continuous duty.
  • Available in a variety of food-grade and sanitary finishes.
  • Patented design that is quiet and maintenance free
