LI-24-3 - High Energy Impactor Vibrator



RECOMMENDED ACCESSORIES

PM-5 - Mounting Channel For 50-3
26124 - 1/2" Inline Lubricator
46124 - Filter/Regulator 1/2" NPT

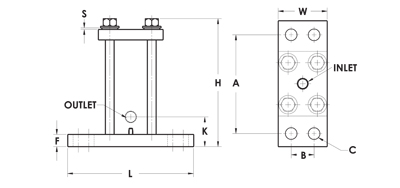

Dimensions

A 8-7/16 in
215 mm
B 2-1/2 in
64 mm
C* 3/4 in
20 mm
L 10-1/2 in
267 mm
W 4-1/2 in
115 mm
H 13-1/2 in
343 mm
F 1 in
26 mm
K 2-1/8 in
54 mm
S 5/16 in
8 mm
INLET 1/2 NPT
OUTLET 1/2 NPT
* Bolt Size

Tech Data

Kinetic Energy @ 80 psi 98 ft lbs
Max Pulse Rate Per Minute 110
80 psi
Cu/Ft Per Stroke 0.049
CFM 5.39
Shipping Weight 68 lbs

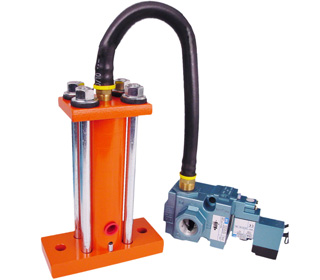

Model LI High Energy Impactors


Use a VIBCO Linear Impactor to break up compacted material. VIBCO LI Piston Vibrators are most commonly used in continuous duty applications on bins, hoppers, chutes and feeders. The action of a VIBCO Linear Impactor is the most similar to a sledge hammer - low frequency with high force. The impact frequency is fully adjustable by regulating the air flow via the included Solenoid Valve and Timer.


All VIBCO Linear Impactors are available in 1-1/4, 2 & 3" piston sizes. Lubricated air is required. Lubricator sold separately.
