LI-16-2 - High Energy Impactor Vibrator


26124 - 1/2" Inline Lubricator
46124 - Filter/Regulator 1/2" NPT
PM-4 - Mounting Channel For 50-2


A 6 in
153 mm
C* 3/4 in
20 mm
L 9 in
229 mm
W 3-1/2 in
89 mm
H 8-7/8 in
226 mm
F 7/8 in
23 mm
K 2-1/8 in
54 mm
S 1/4 in
7 mm
* Bolt Size

Tech Data

Kinetic Energy @ 80 psi 48 ft lbs
Max Pulse Rate Per Minute 160
80 psi
Cu/Ft Per Stroke 0.019
CFM 3.04
Shipping Weight 38 lbs

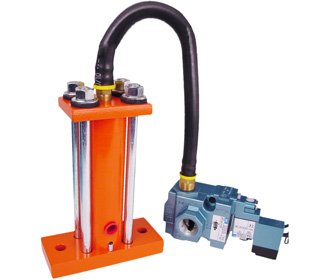

Model LI High Energy Impactors

Use a VIBCO Linear Impactor to break up compacted material. VIBCO LI Piston Vibrators are most commonly used in continuous duty applications on bins, hoppers, chutes and feeders. The action of a VIBCO Linear Impactor is the most similar to a sledge hammer - low frequency with high force. The impact frequency is fully adjustable by regulating the air flow via the included Solenoid Valve and Timer.

All VIBCO Linear Impactors are available in 1-1/4, 2 & 3" piston sizes. Lubricated air is required. Lubricator sold separately.
