LI-10-1-1/4 - High Energy Impactor Vibrator


26124 - 1/2" Inline Lubricator
46124 - Filter/Regulator 1/2" NPT
PM-2 - Mounting Channel For 50-1 1/4

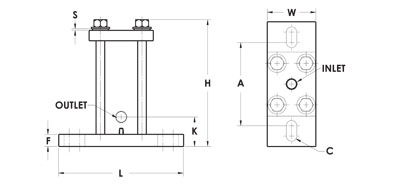

A 4-1/2 in
115 mm
C* 1/2 in
13 mm
L 6 in
153 mm
W 2-1/2 in
64 mm
H 8-9/16 in
218 mm
F 7/8 in
23 mm
K 2-1/8 in
54 mm
S 7/32 in
6 mm
* Bolt Size

Tech Data

Kinetic Energy @ 80 psi 14 ft lbs
Max Pulse Rate Per Minute 200
80 psi
Cu/Ft Per Stroke 0.014
CFM 2.8
Shipping Weight 22 lbs

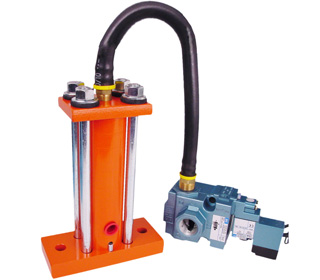

Model LI High Energy Impactors

Use a VIBCO Linear Impactor to break up compacted material. VIBCO LI Piston Vibrators are most commonly used in continuous duty applications on bins, hoppers, chutes and feeders. The action of a VIBCO Linear Impactor is the most similar to a sledge hammer - low frequency with high force. The impact frequency is fully adjustable by regulating the air flow via the included Solenoid Valve and Timer.

All VIBCO Linear Impactors are available in 1-1/4, 2 & 3" piston sizes. Lubricated air is required. Lubricator sold separately.
