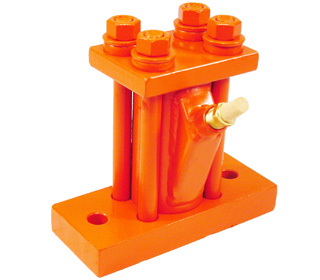

50-2LS-EM - Piston Vibrator



RECOMMENDED ACCESSORIES

3/8SV - Solenoid Valve
PM-4 - Mounting Channel For 50-2
86123 - Ball Valve 3/8"
26123 - 3/8" Inline Lubricator
46123 - Filter/Regulator 3/8" NPT

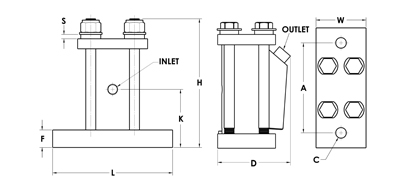

Dimensions

A 6 in
153 mm
C* 3/4 in
20 mm
D 4-3/8 in
112 mm
L 9 in
229 mm
W 3-1/2 in
89 mm
H 9-3/8 in
239 mm
F 7/8 in
23 mm
S 5/8 in
16 mm
INLET 1/4 NPT
OUTLET 1/4 NPT
* Bolt Size

Tech Data

40 psi
VPM 950
CFM 17
60 psi
VPM 1200
CFM 26
80 psi
VPM 1500
CFM 31
Max Lbs Material in Bin 4000-10000
Weight 26 lbs

VIBCO MODEL 50 PISTON VIBRATORS



The perfect choice for the toughest material flow problems - sticky, high-moisture, and coarse materials are no match for the high impact, linear force of a VIBCO Model 50 Piston Vibrator.   Read a VIBCO Piston Vibrator customer story


Use VIBCO Model 50 Piston Vibrators on bins, chutes, and weigh batchers. Compact powdered and viscous materials in containers and forms; activate screens and precipitators.


VIBCO Model 50 Vibrators are used in thousands of applications in mining, chemical, plastics, concrete products, foundry, steel and paper industries. See how VIBCO users solve material flow problems.


Exhaust Manifold


The exhaust manifold on this unit allows you to pipe away exhaust or install a muffler to reduce noise.


Silent Operating Piston


The air cushioned piston on this unit typically reduces noise by 10 or more dB over a standard impacting piston. Order one size larger when replacing a standard impacting piston with a silent piston.


Long Stroke Piston


The long stroke piston on this unit gives you a  larger impact to move fluffy, low density and wet or sticky materials. The 50-L model is especially suited for packaging and screening because the extra-long bodies give high amplitude, high force and low frequency vibration. Available in 2” and 3” piston sizes. Model 50-LS - Air-Cushioned Model. Silent models are also available with silencer & dustproofer.
