50-1-1/2S - Piston Vibrator


3/8SV - Solenoid Valve
46102 - Filter/Regulator 1/4" NPT
86102 - Ball Valve 1/4"
PM-3 - Mounting Channel For 50-1 1/2
26102 - 1/4" Inline Lubricator

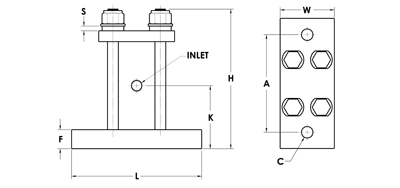

A 6 in
153 mm
C* 3/4 in
20 mm
L 7-1/2 in
191 mm
W 3 in
77 mm
H 7-15/16 in
202 mm
F 7/8 in
23 mm
S 1/2 in
13 mm
* Bolt Size

Tech Data

40 psi
VPM 1700
CFM 6.5
60 psi
VPM 2400
80 psi
VPM 3200
CFM 11
Max Lbs Material in Bin 400-1000
Weight 16 lbs

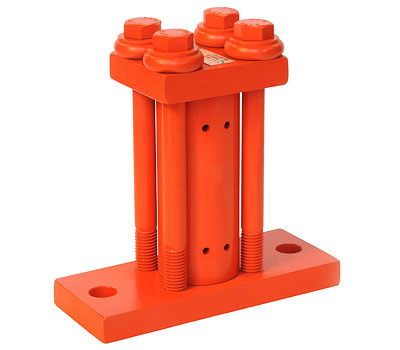

The perfect choice for the toughest material flow problems - sticky, high-moisture, and coarse materials are no match for the high impact, linear force of a VIBCO Model 50 Piston Vibrator.   Read a VIBCO Piston Vibrator customer story

Use VIBCO Model 50 Piston Vibrators on bins, chutes, and weigh batchers. Compact powdered and viscous materials in containers and forms; activate screens and precipitators.

VIBCO Model 50 Vibrators are used in thousands of applications in mining, chemical, plastics, concrete products, foundry, steel and paper industries. See how VIBCO users solve material flow problems.

Silent Operating Piston

The air cushioned piston on this unit typically reduces noise by 10 or more dB over a standard impacting piston. Order one size larger when replacing a standard impacting piston with a silent piston.

Made In The USA 50 Years

US Flag

VIBCO Vibrators™ are 100% MADE IN THE USA since 1962.

Top Quality, Fastest Delivery

  • 100% Manufactured in the USA
  • Strict quality standards
  • Available and in-stock
  • Same day or next day shipping
  • Made with pride since 1962
