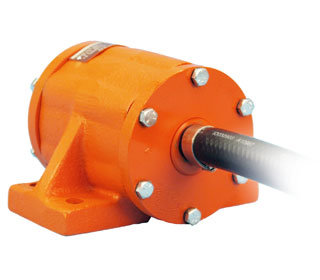

SVR-4000 - High Frequency Vibrator


55SVR11-AM2 - Lubricator 1/2" w/ Universal Coupling
6X10.5CH-IN - Channel Iron (Inches)

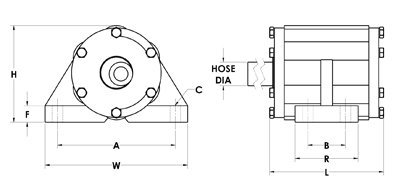

A 6-1/4 in
159 mm
B 2 in
51 mm
C* 1/2 in
13 mm
L 6-1/8 in
156 mm
W 7-1/2 in
191 mm
H 5 in
128 mm
F 7/8 in
23 mm
R 3-7/16 in
88 mm
INLET 3/4 in
19 mm
* Bolt Size

Tech Data

80 psi
VPM 11500
CFM 40
Force lbs 4400
Force Newtons 19500
dB 90
Weight 32 lbs

We've Broken the Sound Barrier

VIBCO's engineers broke the sound barrier of high frequency vibration and developed a "Silent" high frequency vibrator that produces the same speed and force as conventional models... but without all the noise!

Our patented design provides

  • Performance — the high speed and force you need for your job
  • Reliability — starts every time and is guaranteed to perform
  • Quiet Operation — our patented design eliminates the noise normally associated with high frequency
    pneumatic models
  • Efficiency — our patented Air Saver design recycles air
