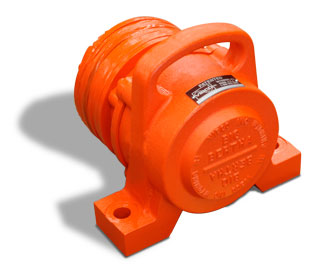

PF-1500 - Pneumatic Vibrator


6X10.5CH-IN - Channel Iron (Inches)
PFM-1 - Mounting Plate for PF/HF-800,1200,1500


A 8-1/2 in
216 mm
B 8-1/2 in
216 mm
C* 3/4 in
20 mm
L 11-1/4 in
286 mm
W 10-3/8 in
264 mm
H 8-3/4 in
223 mm
F 1-3/8 in
35 mm
S 7-3/8 in
188 mm
* Bolt Size

Tech Data

60 psi
VPM 3500
CFM 31
Force lbs 1500
Force Newtons 6672
Weight 60 lbs

Ideal for the Toughest Applications

Big Buster PF Pneumatic Vibrators are ideal for the toughest applications. From unloading railcars to moving materials in huge bins and hoppers (over 150,000 lbs.) — there's a VIBCO Big Buster that can do the job.

VIBCO Big Buster PF Vibrators provide high force and low frequency and are designed for continuous duty, lubrication is required. Precise speed control allows "tuning" of the vibrator so you can achieve the best possible results. Big Buster vibrators are available with a clamp-on base for portability and a bolt-on base for permanent mounting.
