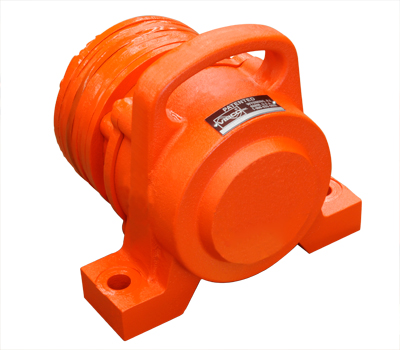

HF-1200 - Hydraulic Turbine Vibrator


PFM-1 - Mounting Plate for PF/HF-800,1200,1500
6X10.5CH-IN - Channel Iron (Inches)

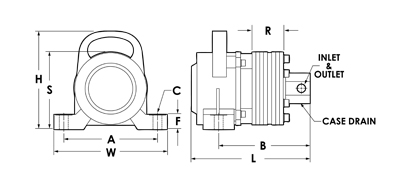

A 8-1/2 in
216 mm
B 8-1/2 in
216 mm
C* 3/4 in
20 mm
L 11-1/4 in
286 mm
W 10-3/8 in
264 mm
H 8-3/4 in
223 mm
F 1-3/8 in
35 mm
R 2-13/16 in
50 mm
S 7-3/8 in
188 mm
INLET 3/4-16 SAE 8
OUTLET 3/4-16 SAE 8
Case Drain 7/16-20 SAE 4
* Bolt Size

Tech Data

VPM 4500
Force lbs 1900
Force Newtons 8450
dB 74
GPM 2.9
Average Running Pressure 800 PSI
Maximum Inlet Pressure 3000 PSI
Weight 42 lbs

Reliable, Trouble-Free Operation

VIBCO offers a complete line of hydraulic vibrators to suit your needs. Our hydraulic vibrators operate in any position and are not affected by dirty, muddy or wet locations. They can operate on pressures up to 3000 PSI — making VIBCO Hydraulic Vibrators ideal for use with construction equipment, concrete forming equipment and a wide variety of applications.

Delivered On Time... Your Time

VIBCO understands that long lead times cost you money — that's why all of VIBCO's standard products ship the same day or very next day we receive your order. We also make sure that you receive the factory support that you need by having live, friendly customer service agents available to assist you from 7:30am — 8:00pm EST, and 24 hour technical support.

Made In The USA 50 Years

US Flag

VIBCO Vibrators™ are 100% MADE IN THE USA since 1962.

Top Quality, Fastest Delivery

  • 100% Manufactured in the USA
  • Strict quality standards
  • Available and in-stock
  • Same day or next day shipping
  • Made with pride since 1962
