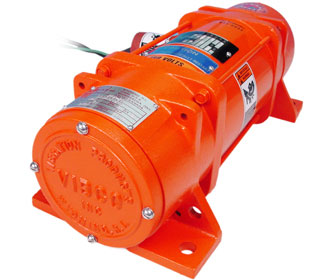

2PX-200-3-460V - Explosion Proof Vibrator



RECOMMENDED ACCESSORIES

3X5CH-IN - Channel Iron (Inches)
VMX-1 - Mounting Plate (2PX-200; 4PX-350)
SC-4 - Safety Cable

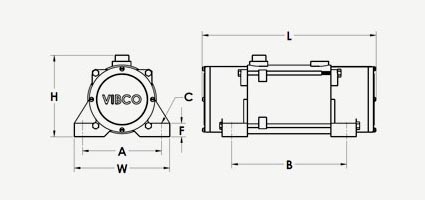

Dimensions

A 5-1/2 in
140 mm
B 11-3/4 in
299 mm
C* 1/2 in
13 mm
L 14-7/8 in
378 mm
W 6-3/4 in
172 mm
H 5-1/4 in
134 mm
F 1/2 in
13 mm
* Bolt Size

Tech Data

VPM 3600
HP 1/3
Phase 3
Volt 420-440
Amp 0.5
Force lbs 150-450
Force Newtons 667-2002
dB 60
Weight 47 lbs

Trust VIBCO Quality and Engineering for your Explosion-Proof Environment


  • American-made explosion-proof motor
  • Adjustable eccentric settings allow you to fine tune force output
  • Some models feature oversized roller bearings to ensure extra long life

Rated for Class I, Groups C & D, Div. 1. Temp. Code T3





Made In The USA 50 Years


US Flag

VIBCO Vibrators™ are 100% MADE IN THE USA since 1962.

Top Quality, Fastest Delivery

  • 100% Manufactured in the USA
  • Strict quality standards
  • Available and in-stock
  • Same day or next day shipping
  • Made with pride since 1962
