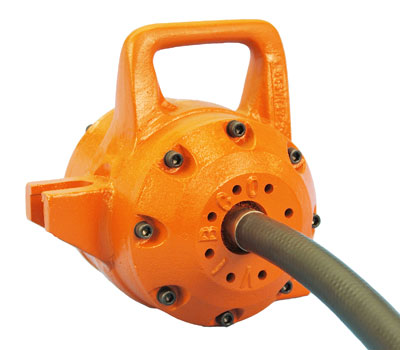

SVRLS-5500 - High Frequency Vibrator



RECOMMENDED ACCESSORIES

55SVR11-AM2 - Lubricator 1/2" w/ Universal Coupling
SC-2C2 - Safety Cable
6X10.5CH-IN - Channel Iron (Inches)
LC-1 - Vibrator Mounting Bracket For Large L&C

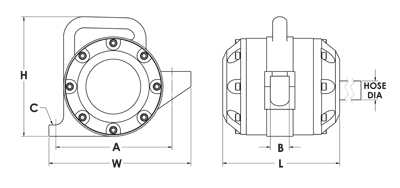

Dimensions

A 7-3/4 in
197 mm
B 1-1/4 in
32 mm
C* 1 in
26 mm
L 8-1/16 in
205 mm
W 9-1/2 in
242 mm
H 9-1/4 in
235 mm
HOSE DIA 3/4 in
20 mm
* Hook Width

Tech Data

80 psi
VPM 9000
Force lbs 4950
Force Newtons 22000
90 psi
VPM 10000
Force lbs 5500
Force Newtons 24500
100 psi
VPM 10500
Force lbs 6100
Force Newtons 27100
CFM 56
dB 82
Weight 52 lbs

We've Broken the Sound Barrier


VIBCO's engineers broke the sound barrier of high frequency vibration and developed a "Silent" high frequency vibrator that produces the same speed and force as conventional models... but without all the noise!

Our patented design provides

  • Performance — the high speed and force you need for your job
  • Reliability — starts every time and is guaranteed to perform
  • Quiet Operation — our patented design eliminates the noise normally associated with high frequency
    pneumatic models
  • Efficiency — our patented Air Saver design recycles air
