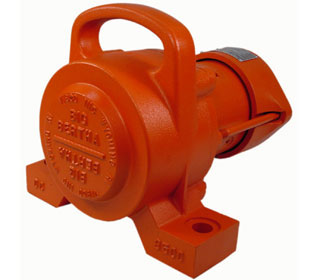

DC-3500-1000 - Big Bertha Dumpbody Vibrator


TDC-1 - Timer, DC-3500 - 12 sec. (fixed)
SC-2 - Safety Cable
TDC-2 - Timer, DC-3500 - Adjustable
6X10.5CH-IN - Channel Iron (Inches)

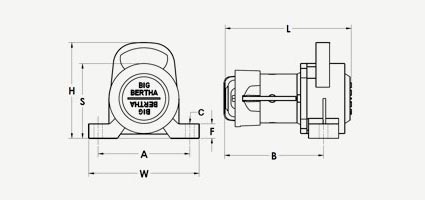

A 8-1/2 in
216 mm
B 9-1/4 in
235 mm
C* 3/4 in
20 mm
L 12 in
305 mm
W 10 in
255 mm
H 9-1/2 in
242 mm
F 1-3/8 in
35 mm
S 7-3/8 in
188 mm
* Bolt Size

Tech Data

VPM 4000
Phase 1
Volt 12 DC
Amp 60
Force lbs 1000
Force Newtons 4450
dB 70
Shipping Weight 60
Unit Weight 36


Don't Leave Profits Stuck in the Truck!

  • Shake even the toughest materials out including hot asphalt, clay, fertilizer, frozen or wet dirt, dredging material, fly ash, wet loam - any material from every corner without a shovel.
  • Keep equipment maintenance and replacement costs under control - no more tailgate slamming, reduce wear and tear on your breaks, stop jerking your hoist, and stop doing damage to your body by scraping it with an excavator or backhoe!
  • VIBCO BIG BERTHA™ kits include everything you need to install* including a mounting plate, wiring kit, cable and mounting bolts
*Mounting channel not included.

Made In The USA 50 Years

US Flag

VIBCO Vibrators™ are 100% MADE IN THE USA since 1962.

Top Quality, Fastest Delivery

  • 100% Manufactured in the USA
  • Strict quality standards
  • Available and in-stock
  • Same day or next day shipping
  • Made with pride since 1962

Not Sure? How can we help you?

Call UsOn the Job PhotosVIBCO TV

Customer Testimonials

I purchased 19 DC-3500 Big Berthas for a project - I can report that those 19 trucks carried 282,000 cubic yards in 27,647 loads of 10.2 cubic yards each of 1"" low slump concrete for that project without a single failure from your equipment. I am now setting up a concrete paving project and have recommended your identical units...

- John D.,Engineering, North Carolina

This is the 4th vibrator we have purchased from you and all have worked well. We mainly use your vibrators for hauling snow for the city of Aspen. The new vibrator is on a 2007 Mack tandem dump truck. Now all we need is the snow! Respectfully submitted

- William D.,Aspen, CO
