2PCD-200-3-230V - Large Electric Vibrator



RECOMMENDED ACCESSORIES

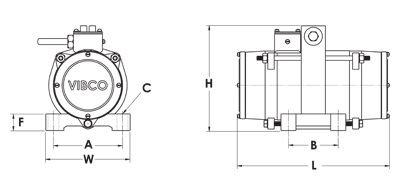

Dimensions

A 4.17 in
106 mm
B 2.44 - 2.91 in
62 - 74 mm
C* 5/16 in
8 mm
L 7-15/16 in
202 mm
W 5 in
127 mm
H 5-1/2 in
140 mm
F 5/8 in
16 mm
* Bolt Size

Tech Data

VPM 3600
HP 1/5
Phase 3
Volt 220-240
Amp 0.5
Force lbs 172-315
Force Newtons 705-1400
dB 60
Weight 11 lbs

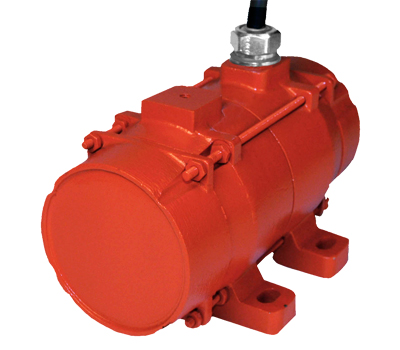

VIBCO’s Model 2PCD is designed to cross-over metric and European style vibrators with foot print dimensions that match most models. Comparable force outputs allow the 2PCD series to be installed directly to your existing mount.

The 2PCD models are totally enclosed, rated forcontinuous duty and completely noiseless. Motors are all made in the U.S.A. and meet American NEMA and ASTME standards. They can be used inside or outside, in dust, dirt, rain or snow.

• Oversized bearings ensure long life.

• Windings are high heat resistant to take additional overload and heat.

• Terminal box located on top of unit for easy connection & change of voltage.
